2MP

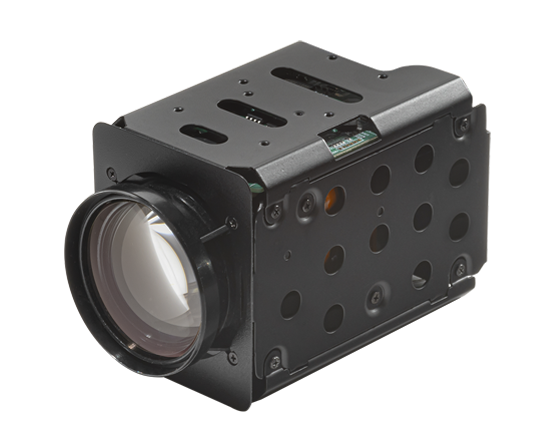

ATC-HZ5625Z-LP

1/2.8 Progressive Scan STARVIS CMOS

300x AF Zoom(25x optical zoom, 12x digital zoom)

1080p 60/50/30/25fps, 720p 60/50/30/25fps, 1080i 60/50fps

Mechanical Day&Night

True WDR

External Synchronization

UART (VISCA, PELCO-D/P)

产品规格

  • Image Sensor

    1/2.8" Progressive Scan STARVIS CMOS

  • Effective Pixels

    2.13MP 1945(H) x 1097(V)

  • Video Output Mode

    LVDS / Parallel / CVBS

  • Max. Video Resolution

    LVDS / Parallel :720p@60(50fps)

  • Synchronization System

    Internal / External

  • Min.Illumination

    Day : 0.1Lux(F1.6), Night : 0.05Lux(F1.6/ ICR on) Sens-Up off, AGC45dB

  • S/N Rate

    More than 55dB(AGC off, Sense-up off)

  • Lens

    AF Optical zoom lens(DC Iris), IR Corrective

    f=5.3mm~130mm

    F1.6(W)~4.3(T)

    H 59.0°(W)~2.4°(T), V 33.6°(W)~1.4°(T)

  • Zoom Ratio

    Optical 25x / Digital 12x

  • Focus Min.Working Distance

    0.1m(Wide)/1.5m(Tele)~∞

  • Focus Control

    Auto/Interval/One Push/Manual/Preset

  • AE mode

    Auto/Shutter Priority/Iris Priority/AGC Priority/Manual

  • Brightness

    0~20

  • Manual Shutter

    1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/10000

  • Manual Iris

    F1.6~F32, Close

  • Sense-up

    Off~32fields

  • ETC

    Spot AE, Slow AE

  • D&N Mode

    Auto/Day(Color)/Night(BW)/External-H or L

  • White Balance

    Auto/ATW/Indoor/Outdoor/One Push/Manual

  • Image Freeze

    Off/On

  • Image Flip

    Off/Horizontal/Vertical/H+V(180° Flip)

  • Privacy Mask Zone

    8 Zones/14 mask color selectable

  • Digital Image Stabilization

    Off/On

  • Motion Detection

    4 Zones

  • D-WDR

    Off/Low/Middle/High

  • WDR

    Off/On, Adjustable

  • BLC

    Off/On, Area selectable

  • HLC

    Off/On, Area selectable

  • AGC

    Max.72dB

  • Sharpness

    Adjustable(0~20)

  • 3D-DNR

    Off/Auto/Low/Middle/High

  • 2D-DNR

    Off/Auto/Low/Middle/High

  • Defog

    Off/On/Auto(Low/Middle/High)

  • Language

    English

  • UART

    Remote: +5.0V/+3.3V

    Protocol: VISCA, PELCO-D/P(Auto detection)

    Baud rate: 2400/4800/9600/19200/38400/57600/115200bps

  • Supply Voltage

    12VDC(9V to 15VDC)

  • Power Consumption

    Max.6.4W / Non-working zoom&focus 4.7W

  • Dimension(mm)

    50X58.8X96.1mm

  • Weight

    Approx.241g

  • Operating Temperature

    -10℃~+50℃, Humidity(Less than 90%)

  • Storage Temperature

    -20℃~+60℃, Humidity(Less than 90%)
