2MP

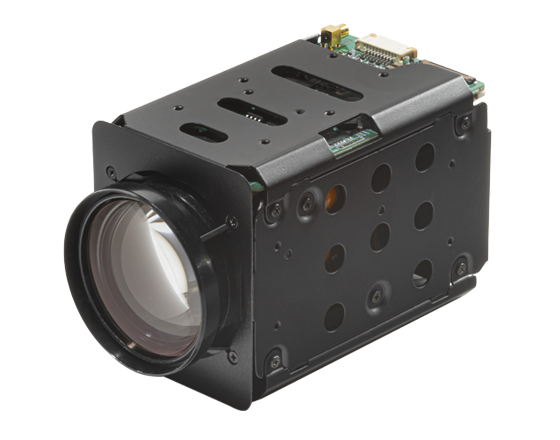

ATC-HZ8330T-LTA

1/2.6 Progressive Scan Global Shutter CMOS

360x AF Zoom(30x optical zoom, 12x digital zoom)

1080p 60/50/30/25fps, 720p 60/50/30/25fps, 1080i 60/50fps

Mechanical Day&Night

True WDR

3D DNR, Defog

UART (VISCA, PELCO-D/P/C)

产品规格

  • Image Sensor

    1/2.6" Progressive Scan Global Shutter CMOS

  • Effective Pixels

    2.3MP 1920(H) x 1200(V)

  • Video Output Mode

    LVDS/HD-SDI/EX-SDI(V1.0/V2.0/V2.1)/

    *3G-SDI : Supported from firmware v 1.4.2 or later. Operation not guaranteed

  • Max. Video Resolution

    HD-SDI/LVDS/EX-SDI/

    *3G-SDI:1080p@60(50fps)

    TVI/AVI:1080p@30(25fps)

  • Synchronization System

    Internal

  • Min.Illumination

    Day: 0.5Lux(F1.6)

    Night: 0.2Lux(F1.6/ ICR on)

    Sens-Up off, AGC36dB

  • S/N Rate

    More than 55dB(AGC off, Sense-up off)

  • Lens

    AF Optical zoom lens(DC Iris), IR Corrective

    Focal Length: f=4.3mm~129mm

    F-value: F1.6(W)~5.0(T)

    Angle of View:

    H 68.9°(W)~2.5°(T), V 41.0°(W)~1.5°(T)

  • Zoom Ratio

    Optical 30x / Digital 12x

  • Focus Min.Working Distance

    0.01m(Wide)/1.0m(Tele)~∞

  • Focus Control

    Auto/Interval/One Shot/Manual/Preset

  • AE mode

    Auto/Iris Priority/Shutter Priority/Manual

  • Brightness

    1~20

  • Manual Shutter

    1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/30000

  • Manual Iris

    F1.6~F19, Close

  • Sense-up

    Off~32fields

  • ETC

    Slow AE

  • D&N Mode

    Auto/Color(Day)/B&W(Night)/EXT-H/EXT-L

  • White Balance

    Auto/Indoor/Outdoor/One push/ATW/Manual

  • Image Freeze

    Off/On

  • Image Flip

    Off/Horizontal/Vertical/H+V(180° Flip)

  • Privacy Mask Zone

    8 Zones/14 mask color selectable

  • Digital Image Stabilization

    Yes

  • Motion Detection

    4 Zones

  • D-WDR

    Off/Low/Middle/High

  • WDR

    Off/On, Adjustable(Level:Low/Middle/High)

  • BLC

    Off/0~10, Area selectable

  • HLC

    Off/0~20, Color selectable

  • AGC

    Max.36dB

  • Sharpness

    Adjustable(0~15)

  • 3D-DNR

    Off/Auto(Level:0~2)/

    Manual(Gain:0~255/THLD:0~255/FK:0~255)

  • 2D-DNR

    Off/Auto(Level:0~2)/

    Manual(Gain:0~255/THLD:0~255)

  • Defog

    Off/On(Low/Middle/High)

  • Preset

    Non-volatile 192 position(zoom/focus) presets.

    16-presets & custom preset

  • Language

    English, Russian, Spanish, German, French, Portuguese, Chinese, Japanese

  • UART

    Remote: +5.0V(option: +3.3V)

    Protocol: VISCA, PELCO-D/P/C(Auto detection)

    Baud rate: 2400/4800/9600/19200/38400/57600/115200bps

    TVI-UTC/AVI-UTC

  • Supply Voltage

    12VDC(9V to 15VDC)

  • Power Consumption

    Max.5.2W / Non-working zoom&focus 3.0W

  • Dimension(mm) & Weight(g)

    50X58.8X90.5mm / Approx.233g

  • Operating Temperature

    -10℃~+50℃, Humidity(Less than 90%)

  • Storage Temperature

    -20℃~+60℃, Humidity(Less than 90%)
