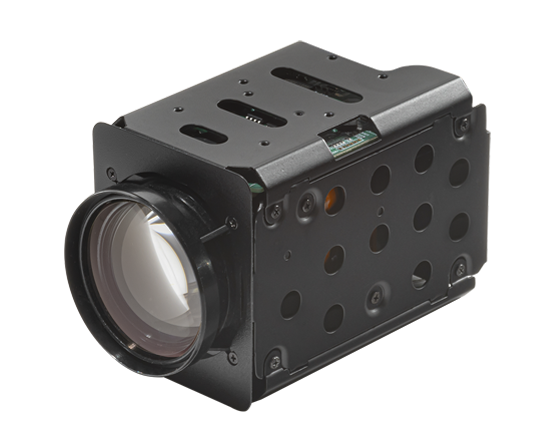

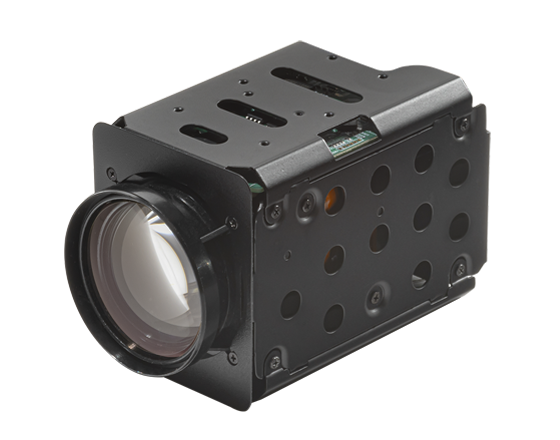

ATC-HZ5630T-LP
1/2.8 Progressive Scan CMOS
360x AF Zoom(30x optical zoom, 12x digital zoom)
1080p 60/50/30/25fps, 720p 60/50/30/25fps, 1080i 60/50fps
Mechanical Day&Night
True WDR
External Synchronization
VISCA, PELCO-D/P
SPECS
-
Image Sensor
1/2.8" Progressive Scan STARVIS CMOS
-
Effective Pixels
2.13MP 1945(H) x 1097(V)
-
Video Output Mode
LVDS / Parallel / CVBS
-
Max. Video Resolution
LVDS / Parallel :1080p@60(50fps)
-
Synchronization System
Internal / External Option
-
Min.Illumination
Day: 0.1Lux(F1.6), Night: 0.05Lux(F1.6/ ICR on)
Sens-Up off, AGC45dB
-
S/N Rate
More than 55dB(AGC off, Sense-up off)
-
Lens
AF Optical zoom lens(DC Iris), IR Corrective
Focal Length: f=4.3mm~129mm
F-value: F1.6(W)~5.0(T)
H 58.9°(W)~2.11°(T), V 45.3°(W)~1.61°(T)
-
Zoom Ratio
Optical 30x / Digital 12x
-
Focus Min.Working Distance
0.01m(Wide)/1.0m(Tele)~∞
-
Focus Control
Auto/Manual/Interval/One Push/Preset
-
AE mode
Auto/Shutter Priority/Iris Priority/AGC Priority/Manual
-
Brightness
0~20
-
Manual Shutter
1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/100000
-
Manual Iris
F1.6~F32, Close
-
Sense-up
Off~32fields
-
ETC
Spot AE, Slow AE
-
D&N Mode
Auto/Color(Day)/BW(Night)/EXT-H/EXT-L
-
White Balance
Auto/ATW/Indoor/Outdoor/One Push/Manual
-
Image Freeze
Off/On
-
Image Flip
Off/Horizontal/Vertical/H+V(180° Flip)
-
Privacy Mask Zone
8 Zones/14 mask color selectable
-
Digital Image Stabilization
Off/On
-
Motion Detection
4 Zones
-
D-WDR
Off/Low/Middle/High
-
WDR
Off/On, Adjustable
-
BLC
Off/On, Area selectable
-
HLC
Off/0 ~ 20, Area selectable
-
AGC
Max.72dB
-
Sharpness
Adjustable(0~20)
-
3D-DNR
Off/Auto/Low/Middle/High
-
2D-DNR
Off/Auto/Low/Middle/High
-
Defog
Off/On/Auto(Low/Middle/High)
-
Language
English
-
UART
Remote: +5.0V/+3.3V
VISCA,PELCO-D/P(Auto detection)
Baud rate: 2400/4800/9600/19200/38400/57600/115200bps
-
Supply Voltage
12VDC(9V to 15VDC)
-
Power Consumption
Max.6.4W / Non-working zoom&focus 3.8W
-
Dimension(mm)
50X58.8X90.5mm
-
Weight
Approx.244g
-
Operating Temperature
-10℃~+50℃, Humidity(Less than 90%)
-
Storage Temperature
-20℃~+60℃, Humidity(Less than 90%)
DOWNLOAD
-
Datasheet & Dimension
ATC-HZ5630T-LP
