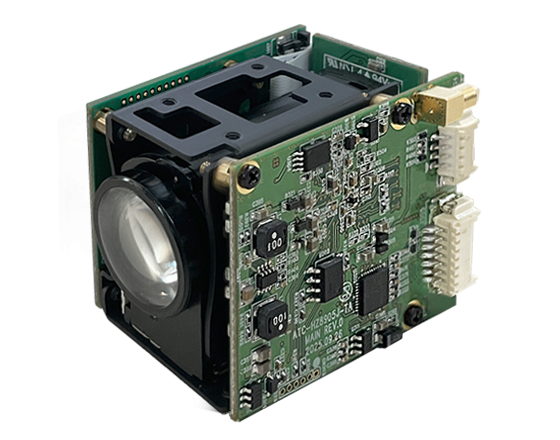

ATC-HZ8905J-TA
1/3.1" Progressive Scan Global Shutter CMOS
80x AF Zoom (5x optical zoom, 16x digital zoom)
1080p 60/50/30/25fps, 720p 60/50/30/25fps, 1080i 60/50fps
True WDR
2D/3D DNR, Defog, DIS
UART (PELCO-D/P, VISCA)
SPECS
-
Image Sensor
1/3.1” Progressive Scan Global Shutter CMOS
-
Effective Pixels
3.2MP 2064(H) x 1552(V)
-
Video Output Mode
HD-SDI/EX-SDI(V1.0/V2.0/V2.1)/CVBS/TVI/AVI
-
Max. Video Resolution
HD-SDI/EX-SDI:1080p@60(50fps)
TVI/AVI:1080p@30(25fps)
-
Synchronization system
Internal
-
Min.Illumination
Day : 0.15Lux (F3.2)
-
S/N Rate
More than 52dB(AGC off, Sens-Up off)
-
Lens
Type: AF Optical zoom lens(DC Iris)
Focal Length: f=5mm~25mm
F-value: F3.2(W)~3.7(T)
Angle of View: H 47°(W)~9.6°(T), V 27°(W)~5.5°(T)
-
Zoom ratio
Optical 5x / Digital 16x
-
Focus Min.Working Distance
0.01m(Wide)~0.5m(Tele)~∞
-
Focus Control
Auto/Interval/One Shot/Manual/Preset
-
AE Mode
Auto/Shutter Priority/Manual
-
Brightness
1~20
-
Manual Shutter
1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/30000
-
D&N Mode
Day(Color)
-
White Balance
Auto/Indoor/Outdoor/One push/ATW/Manual
-
Image Freeze
Off/On
-
Image Flip
Off/Horizontal/Vertical/H+V(180° Flip)
-
Privacy Mask Zone
8 Zones/14 mask color selectable
-
Digital Image Stabilization
Off/On
-
Motion Detection
4 Zones
-
D-WDR
Off/Low/Middle/High
-
WDR
Low/Middle/High
-
BLC
Off/0~10, Area selectable
-
HLC
Off/0~20, Color selectable
-
AGC
Max.48dB
-
Sharpness
Adjustable(0~15)
-
3D-DNR
Off/Auto(Level:0~2)/ Manaul(Gain:0~255/THLD:0~255/FK:0~255)
-
2D-DNR
Off/Auto(Level:0~2)/Manaul(Gain:0~255/THLD:0~255)
-
Defog
Off/On(Low/Middle/High)
-
Position Preset
Non-volatile 192 position(zoom/focus) presets.
16-presets & custom preset
-
Language
English, Russian, Spanish, German, French, Portuguese, Chinese, Japanese
-
UART
Remote: +5.0V(option: +3.3V)
Protocol: VISCA, PELCO-D/P(Auto Detection)
Baud rate: 2400/4800/9600/19200/38400/57600/115200bps
-
Supply Voltage
12VDC(9V to 15VDC)
-
Power Consumption
Max.3.3W / Non-working zoom&focus 2.8W
-
Dimension(mm)
35x46.7x33.8mm
-
Weight
Approx.43g
-
Operating Temperature
0℃~+40℃, Humidity(Less than 90%)
-
Storage Temperature
-20℃~+60℃, Humidity(Less than 90%)
