2MP

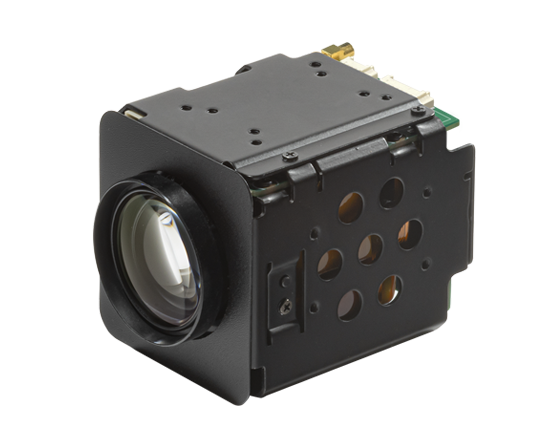

ATC-HZ8309Z-TA

1/2.6" Progressive Scan Global Shutter CMOS

108x AF Zoom (9x optical zoom, 12x digital zoom)

1080p 60/50/30/25fps, 720p 60/50/30/25fps, 1080i 60/50fps

Mechanical Day&Night

True WDR

2D/3D DNR, Defog, DIS

VISCA, PELCO-D/P

SPECS

  • Image Sensor

    1/2.6” Progressive Scan Global Shutter CMOS

  • Effective Pixels

    2.3MP 1920(H) x 1200(V)

  • Video Output Mode

    HD-SDI/EX-SDI(V1.0/ V2.0/ V2.1)/3G-SDI(*)/CVBS/TVI/AVI

    *3G-SDI : Supported from firmware v 1.4.2 or later. Operation not guaranteed

  • Max. Video Resolution

    LVDS/HD-SDI/EX-SDI/*3G-SDI:1080p@60(50fps), TVI/AVI:1080p@30(25fps)

  • Synchronization System

    Internal

  • Min.Illumination

    Day: 0.4Lux(F1.7)

    Night: 0.3Lux(F1.7/ICR on)

    Sens-Up off, AGC36dB

  • S/N Rate

    More than 55dB(AGC off, Sense-up off)

  • Lens

    AF Optical zoom lens(DC Iris), IR Corrective

    Focal Length: f=4.8mm~41.3mm

    F-value: F1.7(W)~3.1(T)

    Angle of View: H 63.8°(W)~7.7°(T), V 41.6(W)~4.9°(T)

  • Zoom Ratio

    Optical 9x / Digital 12x

  • Focus Min.Working Distance

    0.01m(Wide)/1.0m(Tele)~∞

  • Focus Control

    Auto/Interval/One Push/Manual/Preset

  • AE mode

    Auto/Shutter Priority/Iris Priority/Manual

  • Brightness

    1~20

  • Manual Shutter

    1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/30000

  • Manual Iris

    F1.6~F19, Close

  • Sense-up

    Off~32fields

  • ETC

    Slow AE

  • D&N Mode

    Auto/Day(Color)/Night(BW)/EXT-H/EXT-L

  • White Balance

    Auto/One Push/Indoor/Outdoor/ATW/Manual

  • Image Freeze

    Off/On

  • Image Flip

    Off/Horizontal/Vertical/H+V(180° Flip)

  • Privacy Mask Zone

    8 Zones/14 mask color selectable

  • Digital Image Stabilization

    Off/On

  • Motion Detection

    4 Zones

  • D-WDR

    Off/Low/Middle/High

  • WDR

    Low/Middle/High

  • BLC

    Off/On, Area selectable

  • HLC

    Off/On, Area selectable

  • AGC

    Max.36dB

  • Sharpness

    Adjustable(0~15)

  • 3D-DNR

    Off/Auto(Level:0~2)/Manaul(Gain:0~255/THLD:0~255/FK:0~255)

  • 2D-DNR

    Off/Auto(Level:0~2)/Manaul(Gain:0~255/THLD:0~255)

  • Defog

    Off/On(Low/Middle/High)

  • Language

    English

  • UART

    Remote: +5.0V/+3.3V

    Protocol: VISCA, PELCO-D/P(Auto detection)

    Baud rate: 2400/4800/9600/19200/38400/57600/115200bps

    TVI/AVI-UTC

  • Supply Voltage

    12VDC(9V to 15VDC)

  • Power Consumption

    Max.4.8W / Non-working zoom&focus 2.6W

  • Dimension(mm)

    43.8X47X63.5mm

  • Weight

    Approx.121g

  • Operating Temperature

    -10℃~+50℃, Humidity(Less than 90%)

  • Storage Temperature

    -20℃~+60℃, Humidity(Less than 90%)
