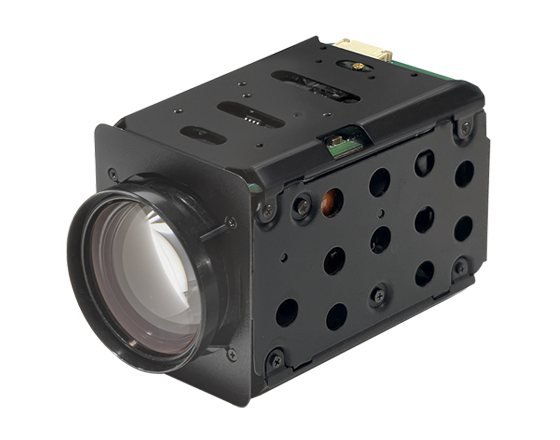

ATC-HZ7830T-LT
1/2.8” Progressive Scan STARVIS CMOS
360x AF Zoom(30x optical zoom, 12x digital zoom)
1080p 60/50/30/25fps, 720p 60/50/30/25fps, 1080i 60/50fps
Mechanical Day&Night
True WDR
3D DNR, Defog
UART (VISCA,PELCO-D/P/C)
SPECS
-
Image Sensor
1/2.8" Progressive Scan STARVIS CMOS
-
Effective Pixels
2.13MP 1945(H) x 1097(V)
-
Video Output Mode
LVDS/CVBS/HD-SDI/EX-SDI(V1.0)/TVI
-
Max. Video Resolution
HD-SDI/LVDS:1080p@60(50fps), EX-SDI/TVI:1080p@30(25fps)
-
Synchronization System
Internal
-
Min.Illumination
Day: 0.1Lux(F1.6), Night: 0.05Lux(F1.6/ICR on)
Sens-Up off, AGC28dB
-
S/N Rate
More than 52dB(AGC off, Sense-up off)
-
Lens
AF Optical zoom lens(DC Iris), IR Corrective
Focal Length: f=4.3mm~129mm
F-value: F1.6(W)~5.0(T)
Angle of View: H 66.9°(W)~2.5°(T), V 39.7°(W)~1.4°(T)
-
Zoom Ratio
Optical 30x / Digital 12x
-
Focus Min.Working Distance
0.01m(Wide)/1.0m(Tele)~∞
-
Focus Control
Auto/Manual/Interval/One Shot/Preset
-
AE mode
Auto/Shutter Priority/Iris Priority/Manual/Bright
-
Brightness
0~14
-
Manual Shutter
1/1, 1/2, 1/4(3), 1/8(6), 1/15(12),1/30(25), 1/60(50)~1/300000
-
Manual Iris
F1.6~F19, Close
-
Sense-up
Off~32fields
-
ETC
Spot AE, Slow AE
-
D&N Mode
Auto/Color(Day)/BW(Night)/EXT-H/EXT-L
-
White Balance
Auto/ATW/Indoor/Outdoor/One Push/Manual
-
Image Freeze
Off/On
-
Image Flip
Off/Horizontal/Vertical/H+V(180° Flip)
-
Privacy Mask Zone
16 Zones/14 mask color selectable
Semi-transparency
-
Digital Image Stabilization
Off/On
-
Motion Detection
4 Zones
-
D-WDR
Off/Low/Middle/High
-
WDR
Low/Middle/High
-
BLC
Off/On, Area selectable
-
HLC
Off/0~20, Color selectable
-
AGC
Max.58dB
-
Sharpness
Adjustable(0~15)
-
3D-DNR
On/Off(1~5)
-
2D-DNR
Auto/Manual(Weight High/Low)
-
Defog
Off/Low/Middle/High
-
Language
English,Janpanese,Russian,Spanish,German,
France,Portuguese,Chinese
-
UART
Remote: +5.0V(option: +3.3V)
Protocol: VISCA, PELCO-D/P/C(Auto detection)
Baud rate: 2400/4800/9600/19200/38400/57600/115200bps
TVI-UTC
-
Supply Voltage
12VDC(9V to 15VDC)
-
Power Consumption
Max.5.0W / Non-working zoom&focus 3.0W
-
Dimension(mm)
50.0X58.8X90.5mm
-
Weight
Approx.244g
-
Operating Temperature
-10℃~+50℃, Humidity(Less than 90%)
-
Storage Temperature
-20℃~+60℃, Humidity(Less than 90%)
