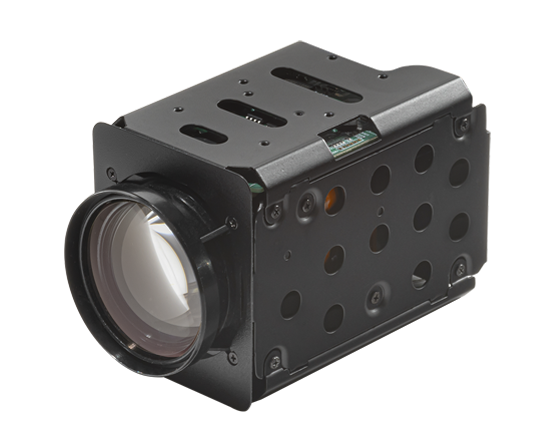

ATC-HZ5530Z-LP
1/2.9 Progressive Scan Global Shutter CMOS
360x AF Zoom(30x optical zoom, 12x digital zoom)
1080p 60/50/30/25fps, 720p 60/50/30/25fps, 1080i 60/50fps
Mechanical Day&Night
True WDR, 3D DNR, Defog
External Synchronization
UART (VISCA, PELCO-D/P)
SPECS
-
Image Sensor
1/2.9" Progressive Scan Global Shutter CMOS
-
Effective Pixels
1.58MP 1456(H) x 1088(V)
-
Video Output Mode
LVDS/Parallel/CVBS
-
Max. Video Resolution
LVDS/Parallel: 1080p@60(50fps)
-
Synchronization System
Internal/External
-
Min.Illumination
Day: 0.1Lux(F1.6)
Night: 0.08Lux(F1.6/ ICR on)
Sens-Up off, AGC45dB
-
S/N Rate
More than 55dB(AGC off, Sense-up off)
-
Lens
Type: AF Optical zoom lens(DC Iris), IR Corrective
Focal Length: f=5.0mm~150mm
F-value: F1.6(W)~5.2(T)
Angle of View: H 56.2°(W)~1.91°(T), V 42.4°(W)~1.39°(T)
-
Zoom Ratio
Optical 30x / Digital 12x
-
Focus Min.Working Distance
0.01m(Wide)/1.0m(Tele)~∞
-
Focus Control
Auto/Interval/One Push/Manual/Preset
-
AE mode
Auto/Shutter Priority/Iris Priority/AGC Priority/Manual
-
Brightness
0~20
-
Manual Shutter
1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/10000
-
Manual Iris
F1.6~F32, Close
-
Sense-up
Off~32fields
-
ETC
Spot AE, Slow AE
-
D&N Mode
Auto/Day(Color)/Night(BW)/EXT-H/EXT-L
-
White Balance
Auto/One Push/Indoor/Outdoor/ATW/Manual
-
Image Freeze
Off/On
-
Image Flip
Off/Horizontal/Vertical/H+V(180° Flip)
-
Privacy Mask Zone
8 Zones/14 mask color selectable
-
Digital Image Stabilization
Off/On
-
Motion Detection
4 Zones
-
D-WDR
Off/Low/Middle/High
-
WDR
Off/On, Adjustable
-
BLC
Off/On, Area selectable
-
HLC
Off/On, Area selectable
-
AGC
Max.48dB(Analog gain), d2X~d9X(Digital gain)
-
Sharpness
Adjustable(0~20)
-
3D-DNR
Off/Auto/Low/Middle/High
-
2D-DNR
Off/Auto/Low/Middle/High
-
Defog
Off/On/Auto(Low/Middle/High)
-
Language
English
-
UART
Remote: +5.0V/+3.3V
Protocol: VISCA, PELCO-D/P(Auto detection)
Baud rate: 2400/4800/9600/19200/38400/57600/115200bps
-
Supply Voltage
12VDC(9V to 15VDC)
-
Power Consumption
Max.6.4W / Non-working zoom&focus 4.7W
-
Dimension(mm)
50x58.8x96.1mm
-
Weight
Approx.233g
-
Operating Temperature
-10℃~+50℃, Humidity(Less than 90%)
-
Storage Temperature
-20℃~+60℃, Humidity(Less than 90%)
