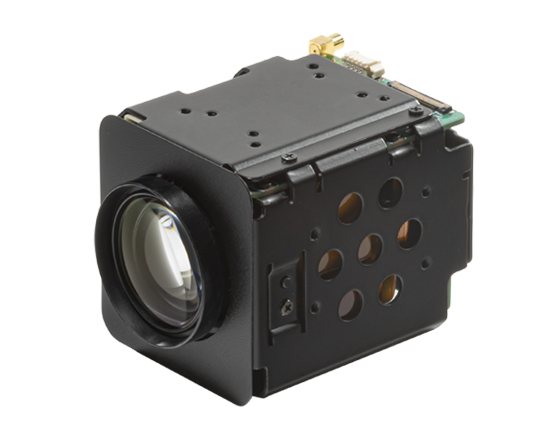

ATC-HZ5909Z-PC
1/3.1" Progressive Scan Global Shutter CMOS
108x AF Zoom (9x optical zoom, 12x digital zoom)
1536p 30/25fps, 1080i 60/59.94/50fps
1080p 60/59.94/50/30/29.97/25fps,
720p 60/59.94/50/30/25fps
Mechanical Day&Night
External Synchronization
UART (VISCA, PELCO-D/P)
SPECS
-
Image Sensor
1/3.1” Progressive Scan Global Shutter CMOS
-
Effective Pixels
3.2MP 2064(H) x 1552(V)
-
Video Output Mode
Parallel / CVBS
-
Max. Video Resolution
2048x1536p@30(25fps), 1920x1080p@60(50fps)
-
Synchronization system
Internal / External
-
Min.Illumination
Day : 0.04Lux(F1.7), Night : 0.02Lux(F1.7/ ICR on) Sens-Up off, AGC48dB
-
S/N Rate
More than 55dB(AGC off, Sens-Up off)
-
Lens
AF Optical zoom lens(DC Iris), IR Corrective
Focal Length: f=4.8mm~40.8mm
F-value: F1.7(W)~3.1(T)
Angle of View:
H 49.4°(W)~6.0°(T)@1920x1080,
H 52.4°(W)~6.3°(T)@2048x1536
V 28.4°(W)~3.4°(T)@1920x1080,
V 40.0°(W)~4.8°(T)@2048x1536
-
Zoom ratio
Optical 9x / Digital 12x
-
Focus Min.Working Distance
0.01m(Wide)/1.0m(Tele)~∞
-
Focus Control
Auto/Manual/Interval/One Push/Preset
-
AE Mode
Auto/Shutter Priority/Iris Priority/ AGC Priority/Manual
-
Brightness
0~20
-
Manual Shutter
1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/30000
-
Manual Iris
F1.6~F32, Close
-
D&N Mode
Auto/Color(Day)/B&W(Night)/EXT-H/EXT-L
-
White Balance
Auto/ATW/Indoor/Outdoor/One push/Manual
-
Image Freeze
Off/On
-
Image Flip
Off/Horizontal/Vertical/H+V(180° Flip)
-
Privacy Mask Zone
8 Zones/14 mask color selectable
-
Digital Image Stabilization
Off/On
-
Motion Detection
4 Zones
-
D-WDR
Off/Low/Middle/High
-
BLC
Off/0~10, Area selectable
-
HLC
Off/0~20, Color selectable
-
AGC
Max.48dB
-
Sharpness
Adjustable(0~20)
-
3D-DNR
Off/Auto/Low/Middle/High
-
2D-DNR
Off/Auto/Low/Middle/High
-
Defog
Off/On/Auto(Low/Middle/High)
-
Preset Position
Non-volatile 192 position(zoom/focus) presets.
16-presets & custom preset
-
Language
English
-
UART
Remote: +5.0V/+3.3V
Protocol: VISCA, PELCO-D/P(Auto detection)
Baud rate: 2400/4800/9600/19200/38400/57600/115200bps
-
Supply Voltage
12VDC(9V to 15VDC)
-
Power Consumption
Max.5.9W / Non-working zoom&focus 3.8W
-
Dimension(mm)
43.8x47x63.5mm
-
Weight
Approx.140g
-
Operating Temperature
-10℃~+50℃, Humidity(Less than 90%)
-
Storage Temperature
-20℃~+60℃, Humidity(Less than 90%)
