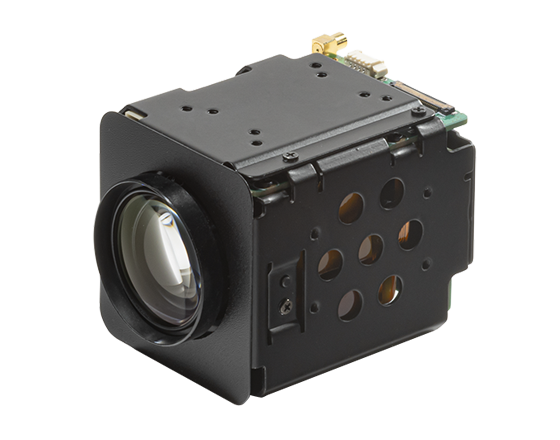

ATC-HZ8610C-L
1/2.8" Progressive Scan STARVIS 2 CMOS
120x AF Zoom(10x optical zoom, 12x digital zoom)
1080p 60/50/30/25fps, 720p 60/50/30/25fps, 1080i 60/50fps
Mechanical Day&Night
True WDR
2D/3D DNR, Defog, DIS
UART (VISCA, PELCO-D/P)
SPECS
-
Image Sensor
1/2.8" Progressive Scan STARVIS 2 CMOS
-
Effective Pixels
2.13MP 1945(H) x 1097(V)
-
Video Output Mode
LVDS/HD-SDI/EX-SDI(V1.0/V2.0/V2.1)/*3G-SDI/CVBS
*3G-SDI : Supported from firmware v 1.4.2 or later. Operation not guaranteed -
Max. Video Resolution
HD-SDI/LVDS/EX-SDI/*3G-SDI:1080p@60(50fps)
-
Synchronization System
Internal
-
Min.Illumination
Day: 0.04Lux(F1.7)
Night: 0.01Lux(F1.7/ICR on)
Sens-Up off, AGC52dB
-
S/N Rate
More than 55dB(AGC off, Sense-up off)
-
Lens
AF Optical zoom lens(DC Iris), IR Corrective
Focal Length: f=5.1mm~51mm
F-value: F1.7(W)~1.9(T)
Angle of View:
H 66.9°(W)~2.5°(T), V 39.7°(W)~1.4°(T)
-
Zoom Ratio
Optical 10x / Digital 12x
-
Focus Min.Working Distance
0.01m(Wide)/1.0m(Tele)~∞
-
Focus Control
Auto/Interval/One Shot/Manual/Preset
-
AE mode
Auto/Iris Priority/Shutter Priority/Manual
-
Brightness
1~20
-
Manual Shutter
1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/10,000
-
Manual Iris
F1.6~F19, Close
-
Sense-up
Off~32fields
-
ETC
Slow AE
-
D&N Mode
Auto/Color(Day)/B&W(Night)/EXT-H/EXT-L
-
White Balance
Auto/Indoor/Outdoor/One Push/ATW/Manual
-
Image Freeze
Off/On
-
Image Flip
Off/Horizontal/Vertical/H+V(180° Flip)
-
Privacy Mask Zone
8 Zones/14 mask color selectable
-
Digital Image Stabilization
Off/On
-
Motion Detection
4 Zones
-
D-WDR
Off/Low/Middle/High
-
WDR
Low/Middle/High
-
BLC
Off/0~10, Area selectable
-
HLC
Off/0~20, Color selectable
-
AGC
Max.80dB
-
Sharpness
Adjustable(0~15)
-
3D-DNR
Off/Auto(Level:0~2)
Manual(Gain:0~255/THLD:0~255/FK:0~255)
-
2D-DNR
Off/Auto(Level:0~2)/Manual(Gain:0~255/THLD:0~255)
-
Defog
Off/Low/Middle/High
-
Preset Position
Non-volatile 192 position(zoom/focus) presets.
16-presets & custom preset
-
Language
English, Russian, Spanish, German, French, Portuguese, Chinese, Japanese
-
UART
Remote: +5.0V/+3.3V
Protocol: VISCA, PELCO-D/P/C(Auto detection)
Baud rate: 2400/4800/9600/19200/38400/57600/115200bps
-
UTC
TVI-UTC/AVI-UTC
-
Supply Voltage
12VDC(9V to 15VDC)
-
Power Consumption
Max.4.3W / Non-working zoom&focus 2.5W
-
Dimension(mm)
41.6x45x61.6mm
-
Weight
Approx.124g
-
Operating Temperature
-10℃~+50℃, Humidity(Less than 90%)
-
Storage Temperature
-20℃~+60℃, Humidity(Less than 90%)
