2MP

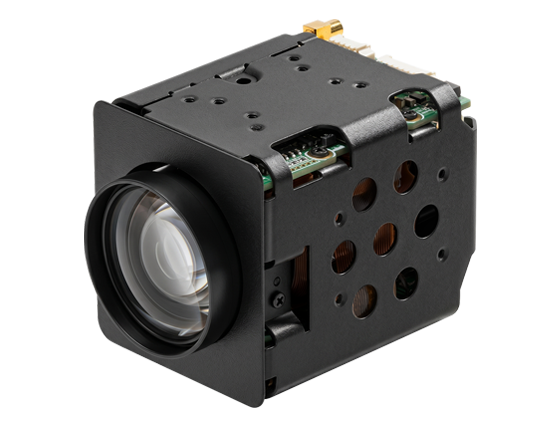

ATC-HZ7810C-T

1/2.8” Progressive Scan STARVIS CMOS

120x AF Zoom(10x optical zoom, 12x digital zoom)

1080p 60/50/30/25fps, 720p 60/50/30/25fps, 1080i 60/50fps

Mechanical Day&Night

True WDR

2D/3D DNR, Defog, DIS

VISCA, PELCO-D/P/C

SPECS

  • Image Sensor

    1/2.8" Progressive Scan STARVIS CMOS

  • Effective Pixels

    2.13MP 1945(H) x 1097(V)

  • Video Output Mode

    CVBS/HD-SDI/EX-SDI(V1.0)/TVI

  • Max. Video Resolution

    HD-SDI:1080p@60(50fps), EX-SDI/TVI:1080p@30(25fps)

  • Synchronization System

    Internal

  • Min.Illumination

    Day: 0.05Lux(F1.7)

    Night: 0.03Lux(F1.7/ ICR on)

    Sens-Up off, AGC28dB

  • S/N Rate

    More than 52dB(AGC off, Sense-up off)

  • Lens

    AF Optical zoom lens(DC Iris), IR Corrective

    Focal Length: f=5.1mm~51mm

    F-value: F1.7(W)~1.9(T)

    H 61.35°(W)~6.15°(T), V 35.47°(W)~3.54°(T)

  • Zoom Ratio

    Optical 10x / Digital 12x

  • Focus Min.Working Distance

    0.01m(Wide)/1.0m(Tele)~∞

  • Focus Control

    Auto/Manual/Interval/One Shot/Preset

  • AE mode

    Auto/Shutter Priority/Iris Priority/Manual/Bright

  • Brightness

    0~14

  • Manual Shutter

    1/1, 1/2, 1/4(3), 1/8(6), 1/15(12),1/30(25), 1/60(50)~1/30000

  • Manual Iris

    F1.6~F19, Close

  • Sense-up

    Off~32fields

  • ETC

    Spot AE, Slow AE

  • D&N Mode

    Auto/Color(Day)/B&W(Night)/EXT-H/EXT-L

  • White Balance

    Auto/ATW/Indoor/Outdoor/One Push/Manual

  • Image Freeze

    Off/On

  • Image Flip

    Off/Horizontal/Vertical/H+V(180° Flip)

  • Privacy Mask Zone

    16 Zones/ 14 mask color selectable, semi-transparency

  • Digital Image Stabilization

    Off/On

  • Motion Detection

    4 Zones

  • D-WDR

    Off/Low/Middle/High

  • WDR

    Low/Middle/High

  • BLC

    Off/On, Area selectable

  • HLC

    Off/0~20, Color selectable

  • AGC

    Max.58dB

  • Sharpness

    Adjustable(0~15)

  • 3D-DNR

    Off/On(1~5)

  • 2D-DNR

    Auto/Manual(Weight High/Low)

  • Defog

    Off/Low/Middle/High

  • Language

    English,Japanese,Russian,Spanish,German

    France,Portuguese

  • UART

    Remote: +5.0V/+3.3V

    Protocol: VISCA, PELCO-D/P/C(Auto detection)

    Baud rate: 2400/4800/9600/19200/38400/57600/115200bps

    TVI-UTC

  • Supply Voltage

    12VDC(9V to 15VDC)

  • Power Consumption

    Max.4.2W / Non-working zoom&focus 2.6W

  • Dimension(mm)

    41.6x45x61.6mm

  • Weight

    Approx.124g

  • Operating Temperature

    -10℃~+50℃, Humidity(Less than 90%)

  • Storage Temperature

    -20℃~+60℃, Humidity(Less than 90%)
